Machine Shop

FACILITIES

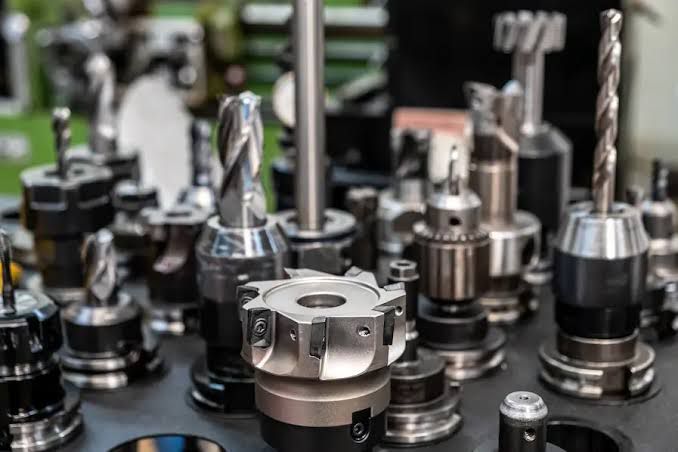

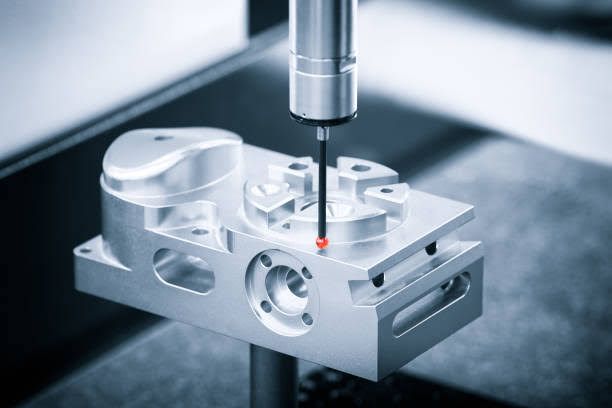

Sri Vishnu Foundries handles the machining requirements with an advanced machine setup that enables the company to meet the consumer requests within optimal lead time satisfying the required accuracy. We help customers with complex processes like E-coat, powder coating and plating through our suppliers. We have good relationships with local machining suppliers to meet on-time delivery alongside strong in-house facility. The machinery is imported from Korea by Hawacheon, holding the prestige of being one of the best in the industry. They are capable of handling components of different sizes at high precision quality. Our esteemed customers are supported by our expert team of engineers and machinists with a fully equipped tool room. Instruments like CMM (Carl Zeiss), Trimos etc are equipped in the foundry and used efficiently by the well trained personnel who help the team to achieve precision.

title icon

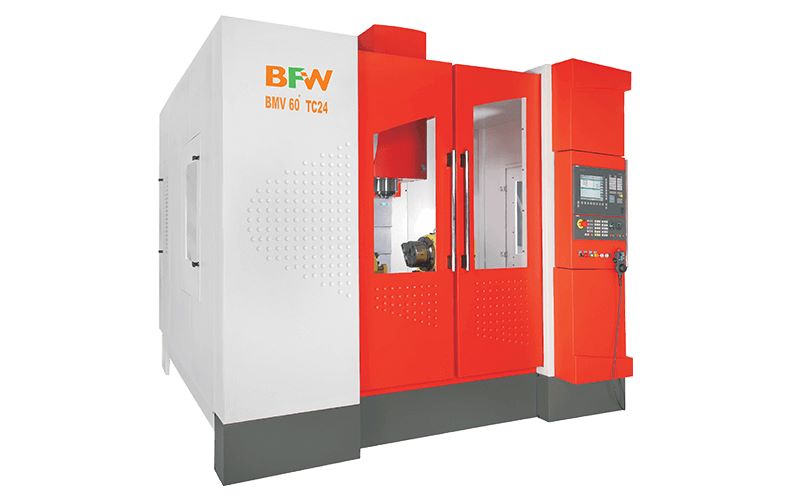

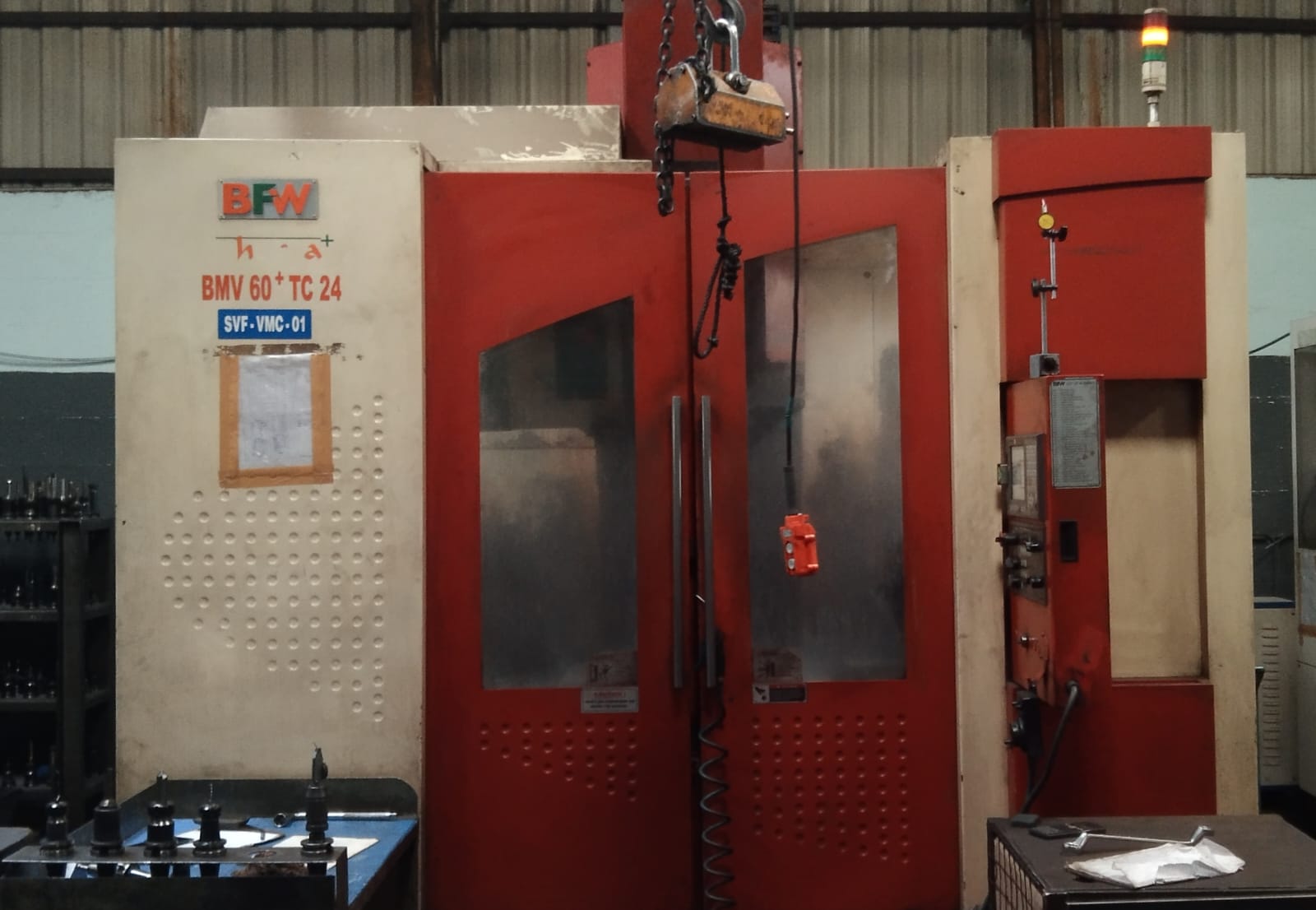

Machine 1: VERTICAL MACHINE CENTRE

MODEL & SUPPLIERS: BFW - AGNI BMV60 TC24.

MACHINE SPECIFICATIONS
X-AXIS TRAVEL 1000MM
Y-AXIS TRAVEL 600MM
Z-AXIS TRAVEL 600MM
Maximum Weight can be loaded 750Kgs
INDEXER PRAGITI BTP 124 -24 STATION
Number of tools in ATC 24
title icon

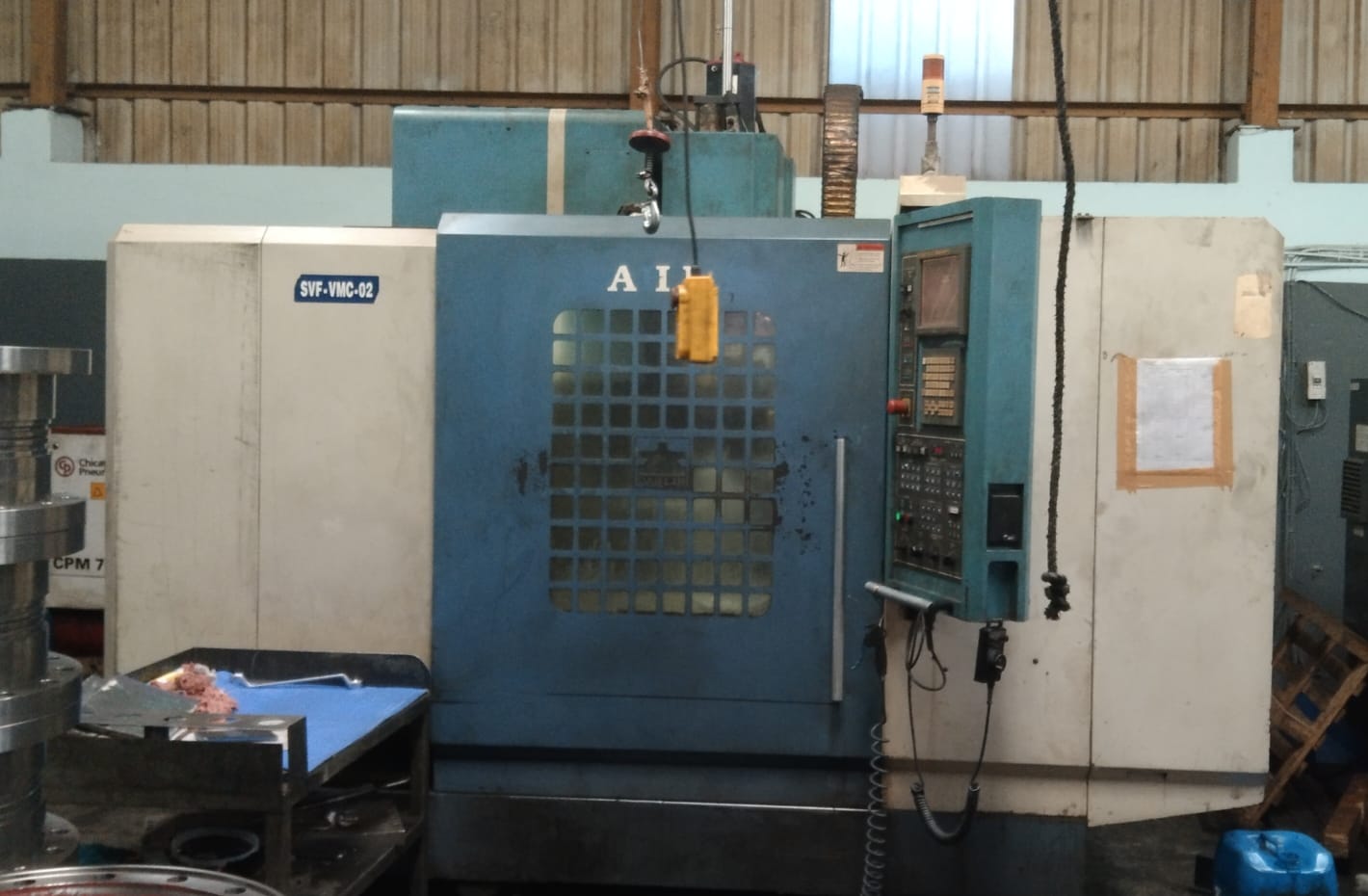

Machine 2: VERTICAL MACHINE CENTRE

MODEL & SUPPLIERS: ACE

MACHINE SPECIFICATIONS
X-AXIS TRAVEL 1000MM
Y-AXIS TRAVEL 600MM
Z-AXIS TRAVEL 800MM
Maximum Weight can be loaded 750Kgs
INDEXER PRAGITI BTP 100 -24 STATION
Number of tools in ATC 24
title icon

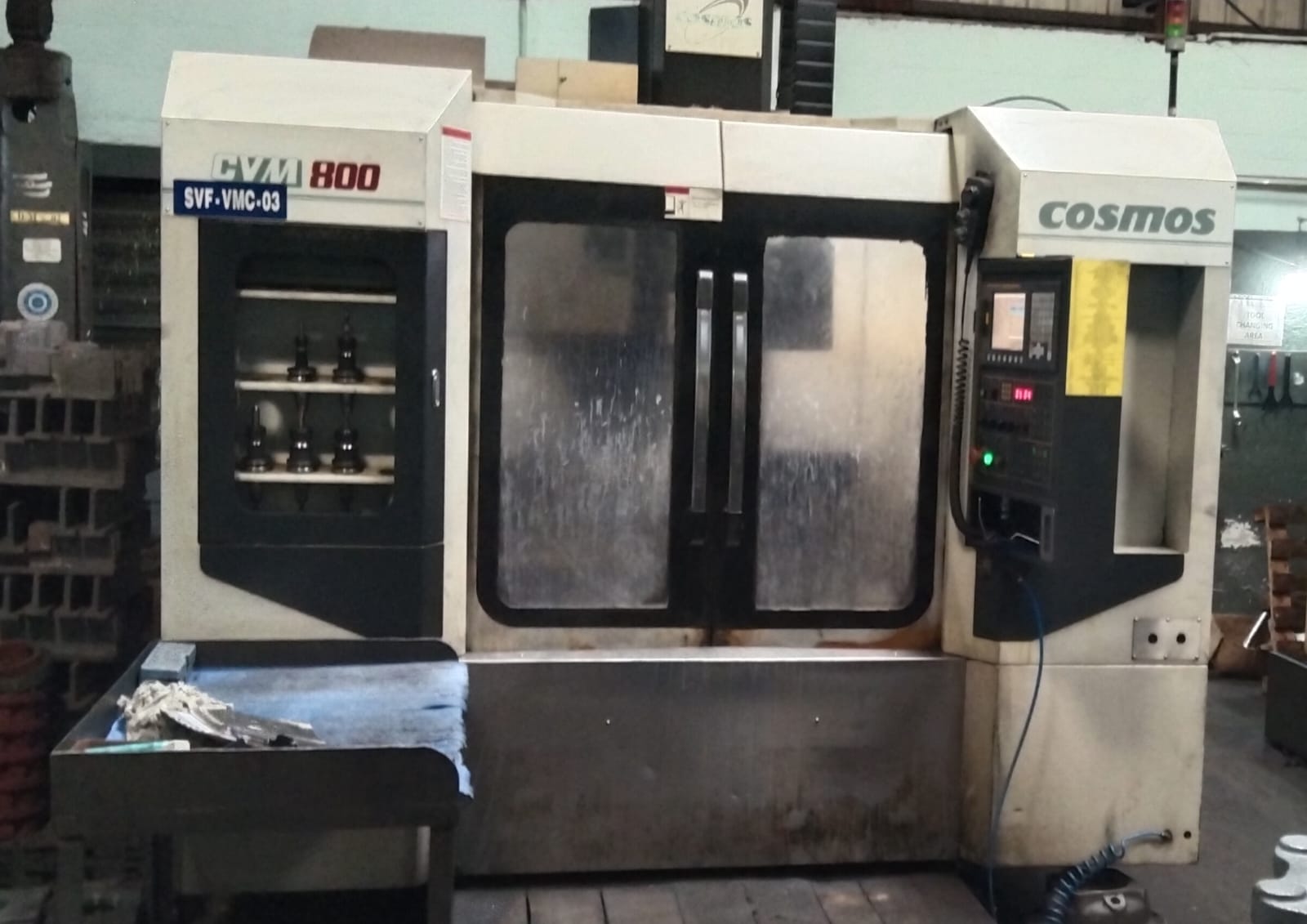

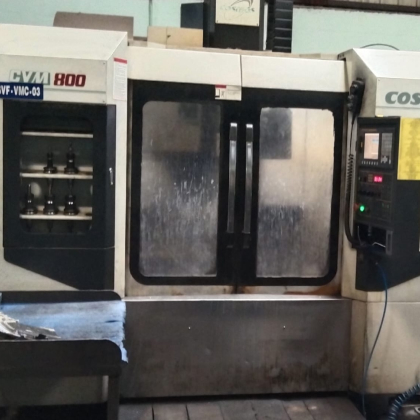

Machine 3: VERTICAL MACHINE CENTRE (2 Nos)

MODEL & SUPPLIERS: COSMOS

MACHINE SPECIFICATIONS
X-AXIS TRAVEL 800MM
Y-AXIS TRAVEL 500MM
Z-AXIS TRAVEL 500MM
Maximum Weight can be loaded 750Kgs
INDEXER PRAGITI BTP 100 -24 STATION
Number of tools in ATC 24
title icon

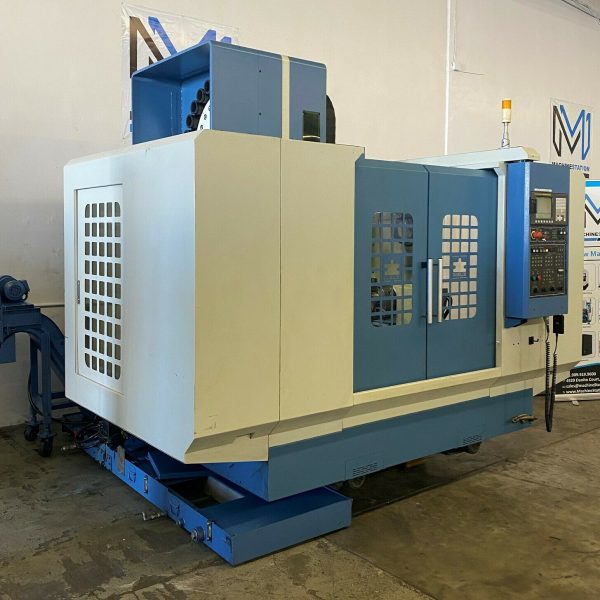

Machine 4: VERTICAL MACHINE CENTRE

MODEL & SUPPLIERS: DAHLIH

MACHINE SPECIFICATIONS
X-AXIS TRAVEL 1000MM
Y-AXIS TRAVEL 600MM
Z-AXIS TRAVEL 800MM
Maximum Weight can be loaded 750Kgs
INDEXER PRAGITI BTP 100 -24 STATION
Number of tools in ATC 24
title icon

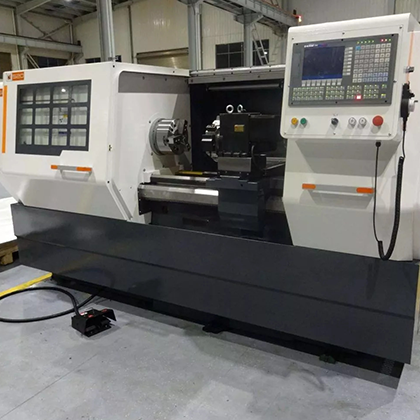

Machine 5: CNC LATHE (5 Nos)

CNC LATHE

MACHINE SPECIFICATIONS
MAX DIAMETER 580mm
LENGTH 800mm

MODEL & SUPPLIERS: ACE - VANTAGE 800

title icon

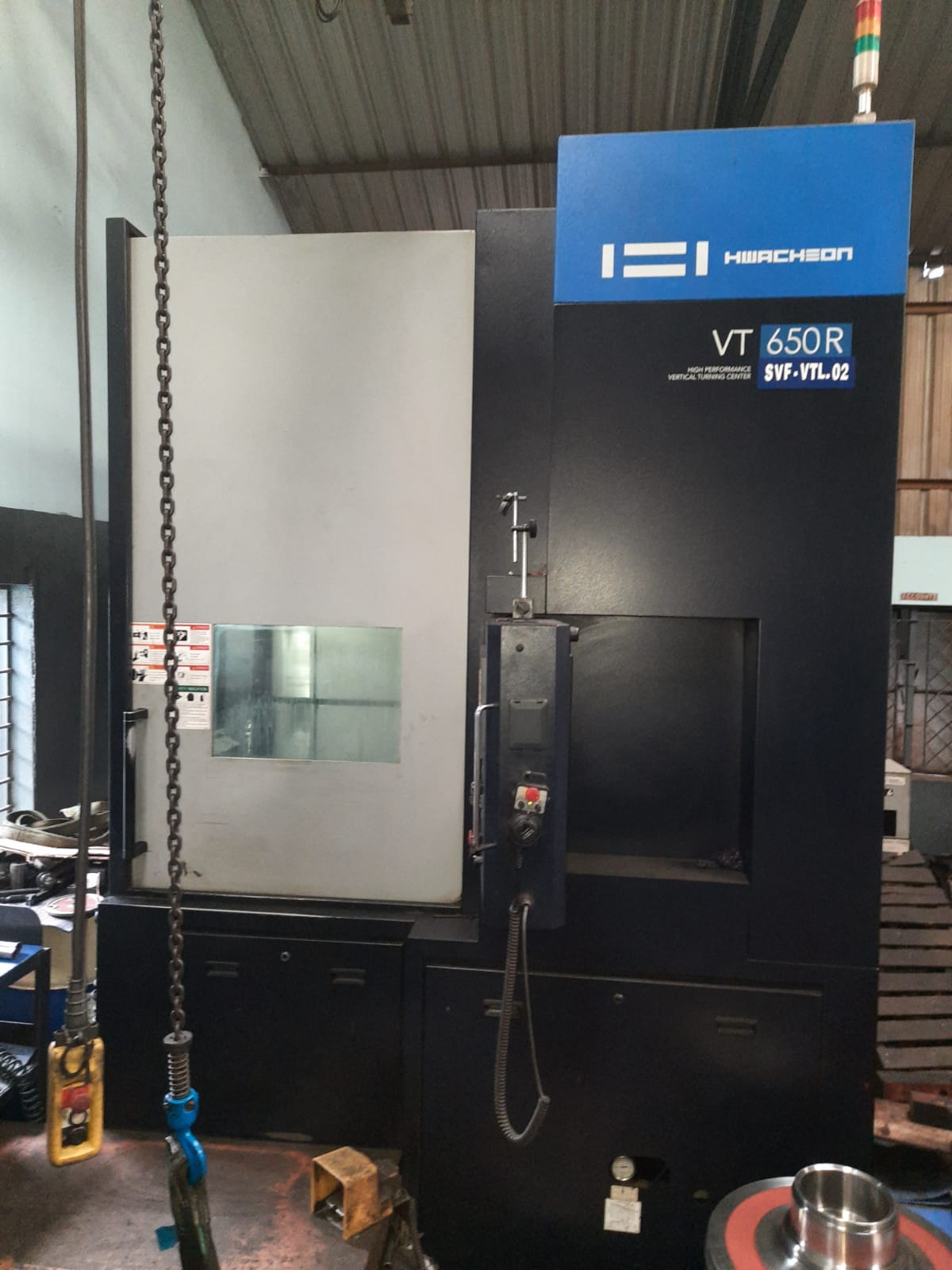

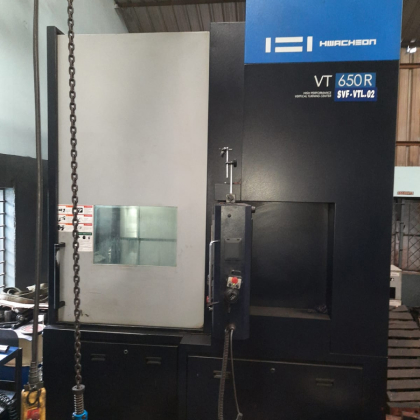

Machine 6: VERTICAL TURNING LATHE

MODEL & SUPPLIERS: Hawacheon 400R, 550R and 650R

MACHINE SPECIFICATIONS
MAX DIAMETER 400-660mm
LENGTH 600mm
title icon
Machine 7:CONVENTIONAL MACHINES
MACHINE SPECIFICATIONS
12’’ RAJKOT LATHE – 8NOS
18’’ RAJKOT LATHE – 1NOS
4” HMT MAKE DRILLING AND MILLING MACHINE
